Installing an indoor pool dehumidifier is a technical process that directly impacts humidity control, structural integrity, and occupant comfort. Below is a clear, field-oriented breakdown of how to approach it.



1. Dehumidifier Pre-Installation Planning

Load Calculation (Critical)

Before selecting or installing equipment, determine:

Pool surface area (primary evaporation driver)

Water temperature vs. air temperature

Room air changes per hour (ACH)

Occupancy level

A typical indoor pool generates 0.1–0.3 lbs of moisture per sq. ft. per hour. Undersizing is one of the most common failures.



2. Choosing Dehumidifier Installation Type

A. Standalone dehumidifier for pool (Floor-Mounted)

Simplest installation

Suitable for small residential pools

Requires clear airflow space

B. Wall-Mounted Dehumidifier

Saves floor space

Good for retrofit projects

C. Ducted / Central System (Most Common for Commercial)

Installed in the mechanical room

Connected via ductwork

Allows even air distribution and better corrosion protection



3. Pool Dehumidifier Placement Guidelines

Airflow Strategy

Supply air should sweep across:

Water surface

Exterior walls and windows (to prevent condensation)

Return air is placed opposite the supply for full circulation

Rule of thumb:

30–50% of airflow directed at windows/glass surfaces



4. Ceiling Dehumidifier Installation Steps

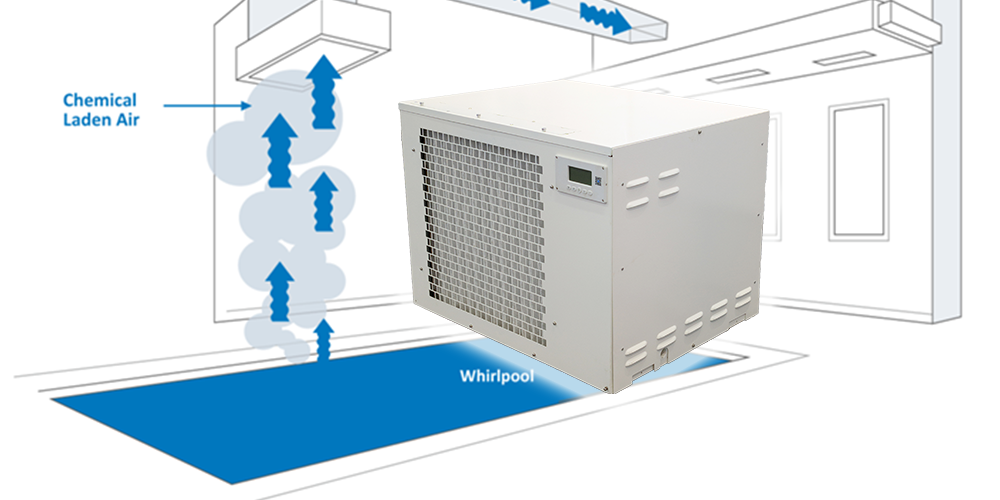

Take the Preair PRO300 commercial wall mount dehumidifier as an instance; the installation steps are as follows.

Step 1: Position the indoor pool dehumidifier

Install on vibration isolators

Ensure service clearance (typically 24–36 inches)

Keep away from direct splash zones (chlorine corrosion risk)



Step 2: Ductwork Installation

Use corrosion-resistant materials (PVC-coated or aluminum)

Seal all joints to prevent moisture leakage

Insulate ducts to avoid condensation



Step 3: Drainage Setup

Connect the condensate drain line

Include:

P-trap (prevents air backflow)

Proper slope (≥1/8 inch per foot)

Optional: condensate pump if gravity drainage is not possible



Step 4: Electrical Connection

Dedicated circuit per manufacturer specs

Install a disconnect switch nearby

Integrate with the control panel/humidistat



Step 5: Fresh Air Integration (if applicable)

Connect to the HVAC or ventilation system

Maintain slight negative or neutral pressure

Follow local code for air exchange rates



Step 6: Controls & Sensors

Install a humidistat at ~4–6 ft height

Avoid placing near supply vents or doors

Typical setpoint: 50–60% RH



5. Commissioning

After installation:

Verify airflow (CFM matches design)

Check refrigerant charge (if applicable)

Test:

Dehumidification cycle

Defrost cycle

Drainage flow

Inspect for air leaks and condensation points



6. Corrosion Protection (Highly Important)

Indoor pool environments are aggressive due to chloramines.

Ensure:

Epoxy-coated coils

Stainless steel or coated components

External placement (mechanical room) when possible



7. Common Installation Mistakes

Undersized unit → persistent humidity issues

Poor airflow distribution → window condensation

No duct insulation → secondary condensation

Improper drain slope → water backup

Installing the indoor pool dehumidifier inside the room without protection → premature failure



8. Pro Tips

Keep the air temperature 2–4°F above the water temperature to reduce evaporation

Use pool covers when not in use (can reduce load by 50–70%)

Integrate with building automation system (BAS) for large facilities



9. When to Use a Professional

You should involve an HVAC engineer or specialist when:

Pool area > 1,000 sq. ft.

Commercial or public facility

Ducted or integrated HVAC system

Strict building code requirements
