Design of a Dehumidification System for Pharmaceutical Factories

Humidity control is a critical part of environmental management in pharmaceutical manufacturing. Excessive moisture can affect the stability of hygroscopic raw materials, compromise powder handling, increase the risk of condensation, and create conditions that support microbial growth. In contrast, excessively low humidity may cause electrostatic discharge (ESD), powder handling difficulties, and other production challenges.

Designing an effective dehumidification system for pharmaceutical factories requires more than selecting an industrial dehumidifier with a suitable capacity. Engineers must consider the requirements of different production areas, temperature and relative humidity (RH) targets, air distribution, ventilation, equipment integration, energy consumption, and regulatory compliance.

PREAIR provides commercial and industrial dehumidification equipment, including the Guard70, Guard120, and Guard240 ceiling-mounted dehumidifiers, as well as customized machines and dehumidification solutions tailored to specific project requirements. With the right equipment selection and system design, pharmaceutical manufacturers can achieve more stable humidity conditions while optimizing space utilization and operating costs.

1. Why Is Humidity Control Important in Pharmaceutical Factories?

Pharmaceutical manufacturing involves sensitive materials, controlled production processes, and strict environmental requirements. An appropriately designed humidity control system helps maintain consistent production conditions.

1.1 Protect Hygroscopic Raw Materials and Products

Many pharmaceutical ingredients, powders, granules, and excipients absorb moisture from the surrounding air. Uncontrolled humidity can cause caking, changes in flowability, degradation of moisture-sensitive ingredients, and inconsistencies during weighing, mixing, and packaging.

A properly designed dehumidification system helps maintain the environmental conditions required for material handling and product stability.

1.2 Reduce Condensation Risks

Temperature differences between process equipment, cold surfaces, and humid air can lead to condensation. Moisture accumulation on ceilings, walls, pipes, and equipment may create maintenance problems and increase the risk of microbial contamination.

Controlling humidity and coordinating it with temperature management can help reduce condensation risks in pharmaceutical production areas.

1.3 Control Electrostatic Risks

Very dry environments can increase electrostatic charge accumulation, especially when handling powders and operating equipment made from insulating materials. Static electricity can affect material transfer, weighing accuracy, and equipment performance.

Humidity targets should therefore be established according to the specific process, material properties, and electrostatic control requirements rather than simply reducing RH as much as possible.

1.4 Support Environmental and Quality Management

Pharmaceutical facilities operate under applicable Good Manufacturing Practice (GMP) requirements and other relevant quality standards. Temperature, humidity, air cleanliness, and pressure relationships may all need to be controlled and documented, depending on the process and facility classification.

A well-designed humidity control system can support environmental monitoring, stable production conditions, and consistent product quality. However, a dehumidifier alone does not establish GMP compliance; the complete HVAC and environmental control system must meet the applicable requirements.

2. Identify Humidity Requirements in Different Pharmaceutical Areas

Before selecting equipment, facility engineers should identify the environmental requirements of each production and storage area. Different processes may require different humidity setpoints and control strategies.

Pharmaceutical area	Main humidity control objectives	Design considerations
Raw material storage	Protect moisture-sensitive ingredients	Material-specific RH limits, door openings, and storage duration
Powder processing	Reduce moisture absorption and caking	Moisture load from materials, process equipment, and personnel
Tablet and capsule production	Maintain consistent processing conditions	Powder properties, production heat, and ventilation
Pharmaceutical packaging	Protect products from moisture exposure	Packaging material, product sensitivity, and line operation
Cleanrooms	Maintain specified environmental conditions	Air cleanliness, pressure cascade, airflow, and HVAC integration
Laboratory areas	Support stable testing and handling conditions	Instrument requirements and local environmental specifications
Dry rooms	Achieve very low moisture levels when required	Dew point targets and potentially desiccant-based drying
Finished product warehouses	Preserve product quality during storage	Seasonal moisture loads, building envelope, and storage requirements

There is no single relative humidity target suitable for every pharmaceutical factory. For example, some conventional production areas may operate within a moderate RH range, while highly moisture-sensitive products require substantially lower humidity or a specified dew point.

The correct design starts with the product and process requirements, not with the dehumidifier model.

3. Key Factors in Pharmaceutical Dehumidification System Design

An effective system must account for both the required environmental conditions and the actual moisture load in the facility.

3.1 Calculate the Total Moisture Load

The first step is to estimate how much moisture the system must remove under peak operating conditions.

Major moisture sources include:

Outdoor air introduced through ventilation and air conditioning systems.

Infiltration through doors, windows, joints, and other building openings.

Moisture released by personnel, wet cleaning, and production activities.

Water vapor released by raw materials, products, or process equipment.

Moisture introduced during material transfer and frequent door opening.

Engineers should evaluate the moisture load under realistic operating conditions, including seasonal weather changes and peak production schedules.

For preliminary calculations, the moisture introduced by outdoor air can be estimated using the difference in humidity ratio between incoming air and the target supply or room condition:

Moisture load = Dry-air mass flow × Humidity-ratio difference

The result is a moisture removal rate, usually expressed in kilograms per hour. Additional moisture sources must then be added to determine the total design load.

3.2 Determine the Required RH and Dew Point

Relative humidity describes how close the air is to saturation at a given temperature. Dew point indicates the temperature at which moisture begins to condense.

Both measurements are useful in pharmaceutical facilities. RH is commonly used for general room environmental control, while dew point is especially important in low-humidity dry rooms and applications involving very dry process air.

The control specification should define:

Target temperature and RH or dew point.

Permitted operating range and alarm limits.

Acceptable spatial variation throughout the room.

Required recovery time after door openings or process changes.

Monitoring frequency and data recording requirements.

The more stringent the moisture specification, the more important it becomes to select an appropriate drying technology and measurement system.

3.3 Integrate Dehumidification with the HVAC System

Pharmaceutical factories frequently use HVAC systems to manage temperature, ventilation, filtration, and room pressure. The dehumidification system should be designed to work with these functions rather than operate independently without coordination.

Key considerations include:

Outdoor air and exhaust air quantities.

Airflow direction and room pressure relationships.

Cooling coil performance and condensate removal.

Supply air temperature and sensible cooling or heating requirements.

Air distribution, return air paths, and dead zones.

Coordination with building management systems (BMS) and environmental monitoring systems.

Refrigerant dehumidifiers remove moisture by cooling air below its dew point and collecting the resulting condensate. They can be useful for many commercial and industrial humidity control applications.

However, when a pharmaceutical process requires very low dew points, a desiccant dehumidification system or a combined refrigerant-desiccant solution may be more appropriate. Equipment selection should be based on the specified environmental conditions and calculated load.

4. PREAIR Guard70, Guard120, and Guard240 Ceiling-Mounted Dehumidifiers

For pharmaceutical facilities that need localized or supplementary humidity control, PREAIR's Guard series offers ceiling mounted refrigerant dehumidifier options in different nominal capacity classes.

The ceiling-mounted design helps preserve floor space for production equipment, material movement, cleaning, and routine operations.

PREAIR Guard70: For Smaller Controlled Areas

The Guard70 can be evaluated for smaller rooms or localized humidity control applications where the required moisture removal rate is relatively low.

Potential applications include selected storage rooms, packaging areas, and other spaces where the calculated moisture load is within the unit's operating capability.

Its suitability depends on the room volume, ventilation rate, ambient conditions, moisture sources, and required RH setpoint.

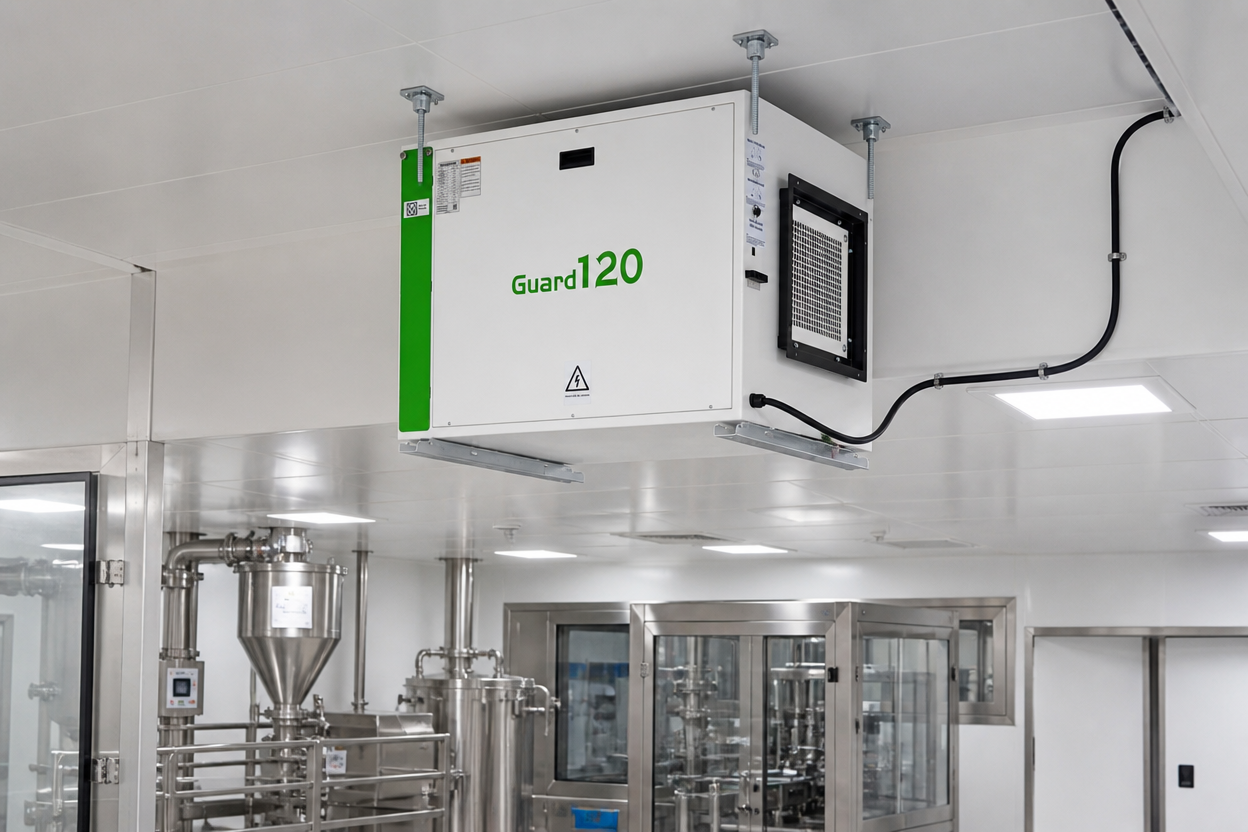

PREAIR Guard120: For Medium Moisture Loads

The Guard120 provides a higher nominal capacity class for medium-sized areas or applications with greater moisture loads.

It may be considered for selected pharmaceutical processing rooms, material handling areas, or packaging spaces where the environmental specification is compatible with refrigerant dehumidification.

Depending on the project, engineers may evaluate a single unit or multiple units to improve capacity distribution and operational flexibility.

PREAIR Guard240: For Higher Moisture Loads

The Guard240 is the higher-capacity option among these three models and can be evaluated for larger areas or applications with greater moisture removal requirements.

Potential applications include selected production support areas, larger storage spaces, and other industrial environments where ceiling-mounted installation is practical.

For larger pharmaceutical facilities, several units may be incorporated into a coordinated system, provided that the design accounts for airflow distribution, drainage, maintenance access, and control integration.

Important: Guard70, Guard120, and Guard240 are model designations, not sufficient evidence of their exact moisture removal rates under pharmaceutical operating conditions. Final selection must be based on the manufacturer's verified performance data at the actual entering-air temperature and RH, together with the required room conditions.

These refrigerant dehumidifiers should not automatically be treated as substitutes for dedicated cleanroom air-handling equipment or ultra-low-dew-point desiccant systems.

5. How to Select the Right PREAIR Dehumidifier Capacity

Selecting a dehumidifier for pharmaceutical facilities based only on room floor area can result in insufficient moisture removal or unnecessary energy consumption.

A more reliable selection process includes the following steps.

Step 1: Define the environmental specification. Establish the target temperature, RH or dew point, permitted variation, and operating schedule for each room.

Step 2: Calculate the moisture load. Include outdoor air, infiltration, personnel, materials, cleaning, and process-related moisture.

Step 3: Check actual equipment performance. Compare the calculated load with the Guard series performance data at the expected operating conditions rather than relying only on a headline capacity rating.

Step 4: Design the air distribution. Determine unit locations, airflow paths, return air arrangements, and the number of units needed to avoid uneven humidity distribution.

Step 5: Evaluate operating and maintenance requirements. Consider energy use, condensate drainage, filter maintenance, access for servicing, and the consequences of equipment failure.

Step 6: Verify the system after installation. Test performance under representative operating conditions and confirm that the environmental targets can be maintained throughout the required operating cycle.

For critical pharmaceutical applications, commissioning should include appropriate instrument calibration, performance verification, alarm testing, and documentation.

6. Why Consider Ceiling-Mounted Dehumidifiers for Pharmaceutical Facilities?

Ceiling-mounted dehumidifiers can provide several practical advantages when properly incorporated into an industrial humidity control design.

Better Use of Floor Space

Pharmaceutical facilities often have limited floor space because of production lines, material handling equipment, and cleaning requirements. Ceiling installation can free up valuable working areas.

Flexible Equipment Layout

Depending on the room structure and service access requirements, ceiling-mounted units can be positioned to support more uniform air circulation and localized moisture removal.

Potentially Simplified Integration

A ceiling-mounted dehumidifier may be integrated into a broader environmental control strategy alongside air conditioning, ventilation, and room monitoring equipment. The integration method depends on the unit configuration and project requirements.

Scalable Capacity Planning

The Guard70, Guard120, and Guard240 provide different nominal capacity classes for project evaluation. A facility can assess different combinations based on room-specific loads and operational priorities.

These advantages depend on appropriate installation. Engineers must verify structural support, clearance, condensate drainage, electrical requirements, noise, cleanability, and maintenance access before finalizing the layout.

7. PREAIR Custom Dehumidifiers and Pharmaceutical Humidity Control Solutions

Pharmaceutical manufacturing projects often have requirements that differ from those of ordinary commercial buildings. Standard equipment may not fully address the installation dimensions, control interfaces, environmental specifications, or maintenance needs of a particular facility.

PREAIR provides customized dehumidifier manufacturing and project-specific dehumidification solutions, helping customers evaluate equipment configurations according to their application and engineering requirements.

Customization and solution planning may cover the following areas, subject to technical feasibility and project confirmation:

Capacity selection: Evaluate the required moisture removal rate and determine suitable unit combinations.

Installation configuration: Assess ceiling-mounted arrangements, equipment dimensions, and available service space.

Control integration: Review humidity sensors, control logic, communication interfaces, and compatibility with the facility's control system.

Drainage design: Evaluate condensate discharge arrangements and maintenance requirements.

Application-specific configuration: Discuss filtration, materials, protective features, and other options needed for the intended environment.

Project support: Provide technical discussions and equipment recommendations based on the customer's layout, environmental targets, and operating conditions.

For example, a pharmaceutical packaging area with moderate humidity requirements may be suitable for a refrigerant-based solution using appropriately selected Guard series equipment. A dry room requiring a very low dew point may need a dedicated desiccant system or a hybrid design instead.

PREAIR can work with customers to assess these differences and identify an appropriate equipment approach rather than applying the same machine configuration to every project.

For pharmaceutical facilities, any required cleanroom classification, sanitary construction, specialized filtration, validated controls, or regulatory documentation should be specified and confirmed explicitly. These requirements should not be assumed to be included in a standard commercial dehumidifier.

8. Energy Efficiency and Operating Cost Optimization

Dehumidification systems may operate for extended periods, making energy consumption an important part of lifecycle cost management.

Several design practices can help improve efficiency.

Avoid Oversizing and Undersizing

Undersized equipment may run continuously without maintaining the required RH. Oversized equipment can increase initial costs and may create control or cycling problems if the system is not designed appropriately.

Capacity should be based on the calculated moisture load and verified equipment performance.

Coordinate Cooling and Dehumidification

Air conditioning and dehumidification both influence indoor temperature and humidity. Coordinating their operation can reduce unnecessary simultaneous cooling, reheating, or conflicting control actions.

Minimize Unnecessary Moisture Infiltration

Door management, appropriate airlocks where required, building-envelope maintenance, and balanced ventilation can reduce the moisture load imposed on the dehumidification system.

Establish a Preventive Maintenance Plan

Dirty filters, obstructed condensate drains, and poorly maintained refrigeration components can reduce performance. A preventive maintenance schedule helps maintain stable operation and detect problems before they disrupt production.

Monitor Performance Over Time

Tracking room RH, temperature, equipment runtime, alarms, and energy consumption can help facility managers identify abnormal moisture loads and opportunities for optimization.

Energy efficiency should always be balanced against the required environmental conditions and product quality risks.

9. Installation, Monitoring, and Maintenance Considerations

A well-designed dehumidification system requires more than appropriate equipment capacity. Installation and ongoing verification are equally important.

Before installation, confirm that the ceiling structure can support the equipment, that electrical connections meet local requirements, and that condensate can be discharged reliably. The location should allow access for inspection, filter replacement, cleaning, and service.

After installation, verify:

Temperature and RH or dew point at representative monitoring points.

Humidity uniformity across the controlled area.

Performance during normal production and peak moisture loads.

Response to door openings and other expected disturbances.

Alarm operation and sensor accuracy.

Condensate drainage and leak prevention.

Coordination with the HVAC and facility control systems.

For regulated pharmaceutical operations, the monitoring and documentation approach should be defined by the facility's quality and engineering teams. Where required, equipment qualification, system validation, and change-control procedures should be addressed as part of the overall project.

Routine maintenance should follow the manufacturer's instructions and the facility's contamination-control procedures.

10. Common Mistakes in Pharmaceutical Dehumidification Design

Several mistakes can undermine humidity control even when a dehumidifier has a seemingly adequate capacity.

Choosing equipment by floor area alone. Room area does not account for outdoor air, infiltration, process moisture, or the required dew point.

Using the same RH target throughout the facility. Different products and production processes may have different environmental requirements.

Ignoring ventilation moisture loads. Outdoor air can introduce a substantial amount of moisture, particularly in hot and humid climates.

Overlooking air distribution. A room may have acceptable RH near the sensor while experiencing high humidity in poorly ventilated areas.

Assuming refrigerant dehumidifiers can achieve every humidity target. Very low dew-point requirements may call for desiccant drying or a combined system.

Neglecting drainage and maintenance access. Poor condensate management can create leaks, downtime, and hygiene concerns.

Assuming a commercial dehumidifier is automatically cleanroom-ready. Cleanroom compatibility, filtration performance, materials, and regulatory documentation must be verified against the actual project specification.

Avoiding these mistakes helps improve system reliability and supports more consistent environmental control.

Conclusion

Designing a dehumidification system for pharmaceutical factories requires a coordinated approach to moisture-load calculation, humidity and dew-point requirements, HVAC integration, air distribution, equipment selection, monitoring, and maintenance.

PREAIR's Guard70, Guard120, and Guard240 ceiling-mounted dehumidifiers offer different capacity options for evaluating localized and general industrial humidity control applications. Their suitability depends on verified performance data and the environmental requirements of the specific production area.

Beyond standard equipment, PREAIR provides customized dehumidifier manufacturing and tailored dehumidification solutions to help customers address project-specific capacity, installation, control, and application requirements. For pharmaceutical facilities, the most effective solution is one that matches the product's moisture sensitivity, the process conditions, and the facility's engineering and quality requirements.

Contact PREAIR to discuss your pharmaceutical factory's humidity control targets, floor plan, operating conditions, and equipment requirements, and to evaluate a suitable dehumidification solution for your project.

Frequently Asked Questions

1. What is the ideal humidity level for a pharmaceutical factory?

There is no universal ideal RH level for every pharmaceutical factory. The required range depends on the drug formulation, raw materials, manufacturing process, packaging method, and applicable quality requirements. Some areas can operate at moderate RH, while moisture-sensitive production processes require much lower humidity or a specified dew point.

2. Which dehumidifier is suitable for pharmaceutical manufacturing?

The appropriate equipment depends on the moisture load and required environmental conditions. Refrigerant dehumidifiers, such as suitable PREAIR Guard series configurations, may work for conventional humidity control. Desiccant dehumidifiers or hybrid systems may be necessary for very low dew-point applications.

3. Can PREAIR customize dehumidifiers for pharmaceutical factories?

Yes. PREAIR provides customized dehumidifier manufacturing and project-specific dehumidification solutions. Customers can discuss required capacity, installation constraints, control interfaces, drainage arrangements, and other technical specifications with PREAIR. Any specialized cleanroom or regulatory requirements must be confirmed during project evaluation.

4. What is the difference between the PREAIR Guard70, Guard120, and Guard240?

The three models represent different nominal capacity classes for project evaluation. The suitable model depends on the room's calculated moisture load, operating temperature, target RH, ventilation rate, and other conditions. Final selection should use verified performance data at the actual operating conditions.

5. Can a ceiling-mounted dehumidifier be used in a pharmaceutical cleanroom?

Potentially, but suitability cannot be assumed from the installation style alone. Engineers must verify filtration, materials, cleanability, airflow, condensate management, maintenance access, and compatibility with the cleanroom's environmental and regulatory requirements. The equipment must be integrated into a properly designed and qualified overall system.

6. How can pharmaceutical manufacturers reduce dehumidification energy costs?

Manufacturers can improve efficiency by accurately calculating moisture loads, minimizing unnecessary infiltration, coordinating dehumidification with HVAC operation, selecting equipment based on actual performance, and maintaining filters and drainage systems. Continuous monitoring also helps identify abnormal moisture loads and operating inefficiencies.
