How Commercial Dehumidifiers Are Made

By Preair — commercial and industrial dehumidifier manufacturer

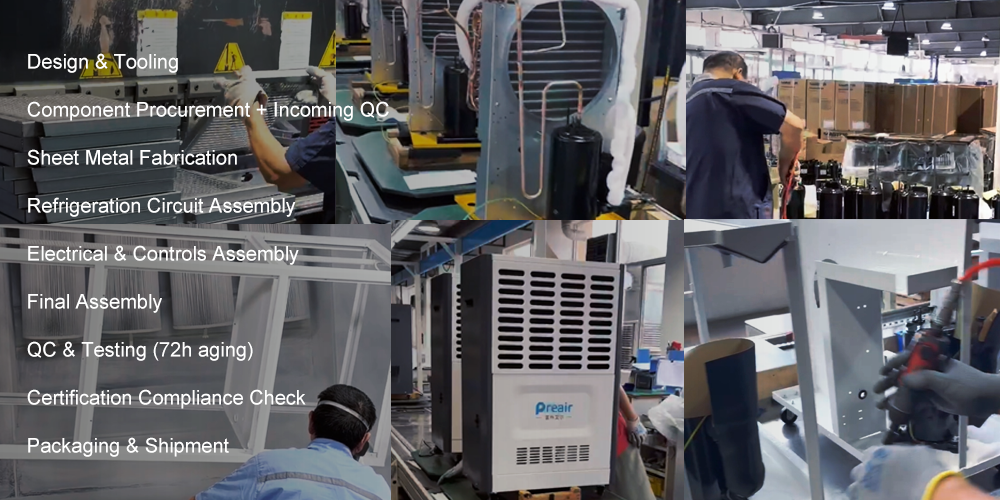

A commercial dehumidifier is manufactured through nine sequential stages — from engineering design and component sourcing through sheet metal fabrication, refrigeration circuit assembly, electrical integration, quality testing, and certification compliance — before packaging and shipment. Each unit typically requires 4–6 hours of active production time plus a mandatory 72-hour aging run before it leaves the factory floor.

What Goes Into Making a Commercial Dehumidifier?

Commercial dehumidifiers — units rated from 70 pints/day up to 400+ liters/day for industrial use — are precision-engineered appliances that combine refrigeration technology, sheet metal fabrication, and embedded electronics. Unlike residential units, commercial-grade models must withstand continuous 24/7 operation, wide temperature ranges (typically 33°F–105°F / 1°C–40°C), and demanding environments such as basements, construction sites, crawlspaces, and food processing facilities.

Manufacturers like Preair specialize in this category, producing units for OEM buyers, facility operators, and commercial contractors across North America, Europe, and Australia.

Understanding how they are made helps procurement managers, facility engineers, and OEM buyers evaluate factory capabilities, audit supplier quality systems, and identify where manufacturing shortcuts create long-term reliability risks.

Stage 1: Engineering Design and Tooling

Every model begins with a detailed engineering specification:

Rated capacity (pints/day or L/day) at the AHAM standard condition (80°F / 60% RH)

Operating envelope: temperature range, altitude, target humidity setpoint

Refrigerant selection: R410A, R32, or R134a — determined by the destination market's regulatory requirements (e.g., F-Gas Regulation in Europe, EPA SNAP in the US)

Electrical spec: 115V/60Hz (North America), 220–240V/50Hz (Europe, Australia, Asia)

We produce CAD drawings for all sheet metal components, and machine injection molds for plastic parts such as water tanks, air grilles, and control panel housings. Tooling lead time is typically 30–45 days for a new model.

Stage 2: Component Procurement and Incoming Quality Control

A commercial dehumidifier contains six critical component families. Incoming QC at the factory gate is the first line of defense against field failures.

Component	What Is Checked
Compressor	Refrigerant compatibility, rated tonnage, brand authenticity (counterfeit risk is real)
Evaporator / Condenser coil	Copper tube gauge (min. 7mm OD for commercial), fin density (12–16 FPI), hydrophilic coating
Fan motor	CFM/CMH airflow rating, noise level (dBA), thermal protection class (Class B or F)
PCB control board	Humidity sensor accuracy (±2% RH), relay voltage/current rating, EMC pre-screening
Sheet metal panels	Galvanized steel thickness (0.8–1.2mm), flatness tolerance, zinc coating weight
Refrigerant	Purity certificate (≥99.9%), charge weight batch traceability

Why this matters for buyers: A factory that skips incoming QC on compressors — the most commonly substituted component in cost-cutting scenarios — will produce units with 30–40% shorter MTBF in field conditions.

Stage 3: Sheet Metal Fabrication

The structural chassis and housing panels go through five sub-processes:

Blanking

Steel coils are cut to blank sheets via CNC punch press or laser cutter

Bending / Forming

CNC press brake shapes side panels, top covers, internal brackets, and the base frame to ±0.2mm dimensional tolerance

Welding

MIG or TIG welding joins structural frame joints; weld quality is critical for vibration resistance in mobile applications

Surface treatment

Chemical degreasing → zinc phosphating (adhesion primer) → electrostatic powder coating (epoxy/polyester blend)

Oven curing at 180–200°C for 20–25 minutes

Post-coat inspection

Salt spray test (minimum 500 hours to ASTM B117), coating thickness measurement (target: 60–80 μm)

The powder coat color and texture are specified per the buyer's brand standard. Most factories can produce custom RAL colors with a 200-unit MOQ.

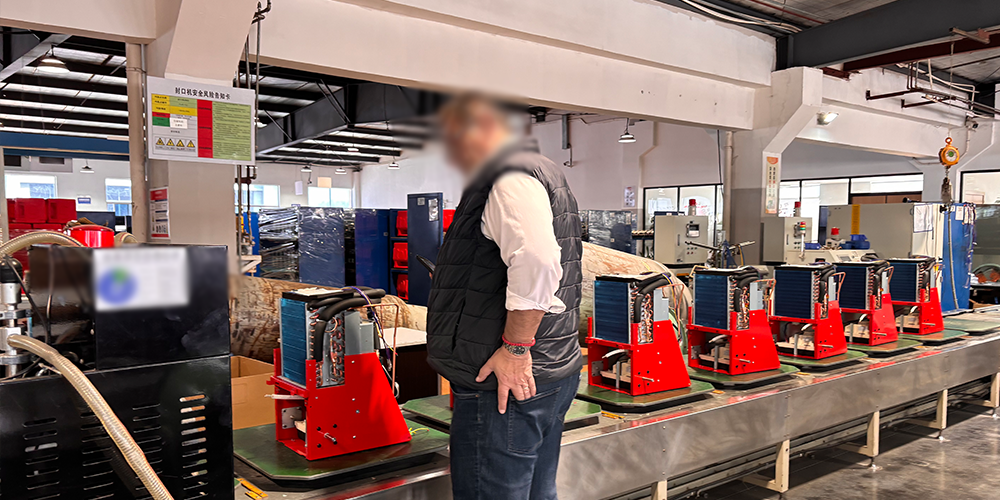

Stage 4: Refrigeration Circuit Assembly

This is the most technically demanding stage, where the core moisture-removal mechanism is assembled.

Step-by-step:

Coil fabrication — Aluminum fins are stamped and assembled onto copper tubes; U-bend elbows are brazed with silver-phosphor alloy

Coil pressure test — Nitrogen at 400–600 PSI held for 30 minutes; any pressure drop indicates a micro-leak and triggers rejection

Compressor mounting — Installed on anti-vibration rubber isolators; fasteners torqued to spec (typically 8–12 Nm)

Refrigerant line brazing — Nitrogen-purged oxy-acetylene brazing prevents internal oxide scale that would otherwise clog the expansion valve

System evacuation — Vacuum pump pulls system pressure to ≤200 microns (26.7 Pa); this removes all moisture and non-condensable gases

Refrigerant charging — Weighed charge injected via calibrated manifold gauge set; tolerance is ±5g for a typical 1–2 kg charge

Common failure mode: Inadequate evacuation (stopping at 500–1000 microns rather than ≤200) leaves residual moisture in the system, which reacts with refrigerant oil to form acids that corrode the compressor internals within 12–18 months.

Stage 5: Electrical and Controls Assembly

PCB control board, relay board, and display panel mounted and secured in the control box

Temperature and humidity sensors positioned in the return-air inlet stream

Wiring harness routed, bundled in conduit, and secured with nylon cable ties at 150mm intervals

Safety devices installed: thermal overload protector on the compressor, float switch in the condensate tray, GFCI on the power cord (where required)

Electrical safety inspection:

Continuity test across all circuits

Insulation resistance test: ≥1 MΩ at 500V DC between live conductors and chassis ground

Stage 6: Final Assembly Integration

With all sub-assemblies complete, final integration takes approximately 45–90 minutes per unit on a staffed assembly line:

Fan and motor sub-assembly torqued into the chassis

Refrigeration circuit connected to control board via wiring harness

Condensate pump or gravity drain fitting installed

Air filter frame and washable filter media fitted

Outer housing panels attached; panel gap tolerance checked (≤ 1.5mm for commercial grade)

All fasteners inspected for full engagement

Stage 7: Quality Control Testing

Every unit — not a statistical sample — undergoes functional testing before leaving the line.

Functional Performance Tests

Test	Pass Criteria
Moisture removal rate	Within ±5% of nameplate rating (AHAM DH-1 or EN 810 chamber method)
Power consumption	Within ±3% of rated wattage
Noise level	At or below rated dBA at 1 meter
Humidity sensor accuracy	±3% RH across 30–90% RH range
Auto-restart after power interruption	Resumes operation within 3 minutes
Defrost cycle (low-temp models)	Initiates at correct evaporator coil temperature setpoint

Durability and Safety Tests (Batch / Type Tests)

72-hour continuous aging run at rated load — eliminates early-life failures (infant mortality)

Hi-pot (dielectric strength) test — 1,500V AC applied for 1 second; zero breakdown permitted

Ground continuity test — Chassis-to-ground pin resistance ≤0.1Ω

Overflow protection test — Float switch verified to trigger before condensate overflows tray

Stage 8: Certification and Compliance

Market access depends on the destination. Factories producing for multiple markets must maintain parallel compliance programs.

Market	Required Certifications
USA / Canada	ETL or UL 474; ENERGY STAR (voluntary but increasingly buyer-required); FCC Part 15 for control electronics
Europe	CE marking (LVD 2014/35/EU + EMC 2014/30/EU + RoHS 2011/65/EU); F-Gas regulation compliance; WEEE registration
Australia / New Zealand	RCM (Regulatory Compliance Mark) — combines electrical safety and EMC
China domestic	CCC (China Compulsory Certification, "3C")

Third-party certification bodies (Intertek, TÜV, SGS, UL) conduct type-testing on sample units from each model family. Ongoing compliance requires annual factory audits and production surveillance.

Stage 9: Packaging and Shipment Preparation

Inner protection — Foam corner protectors (minimum 40mm density EPE), PE stretch film, desiccant sachet inside carton

Outer carton — Double-wall corrugated; burst strength ≥275 PSI (TAPPI T810)

Drop and vibration test — Per ISTA 2A or ASTM D4169 protocols for the unit's gross weight class

Product labeling — Model number, serial number, electrical rating, refrigerant type and charge weight, country of origin, certification marks

Pallet loading — Stretch-wrapped; stacking height limited per carton compression rating; units oriented upright to prevent compressor oil pooling
